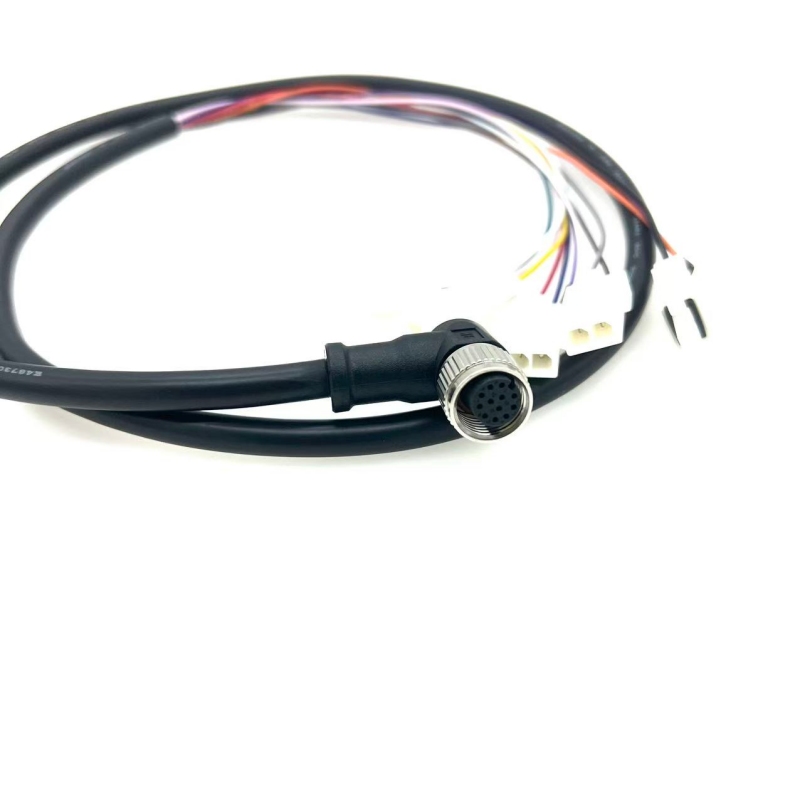

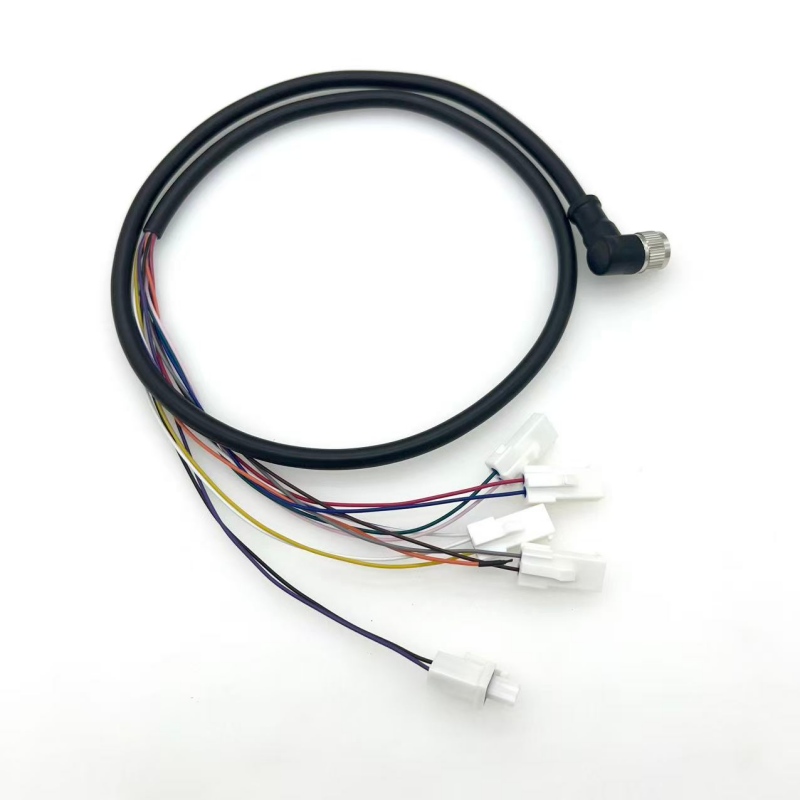

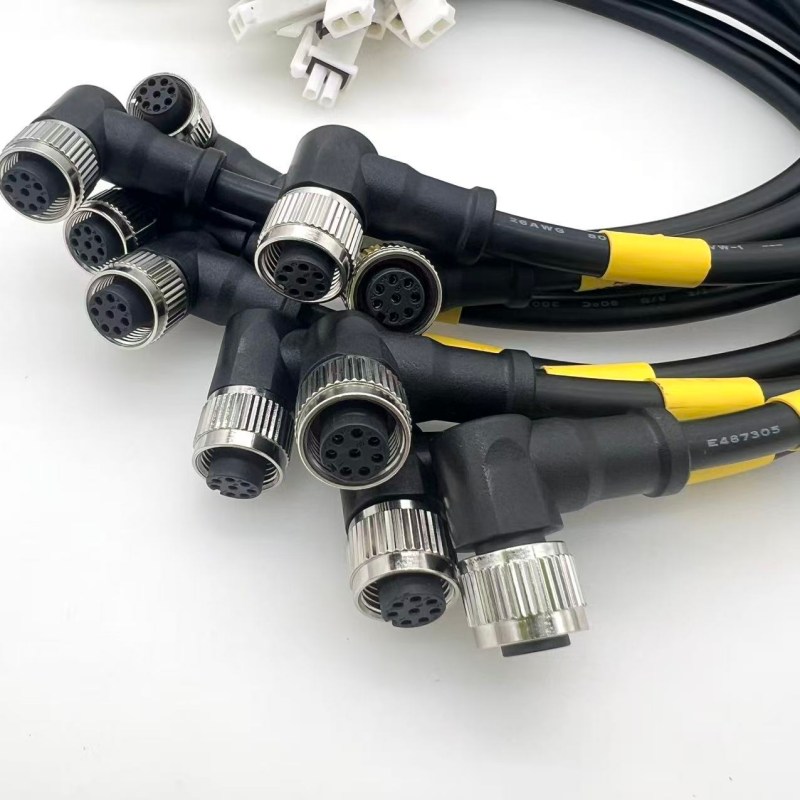

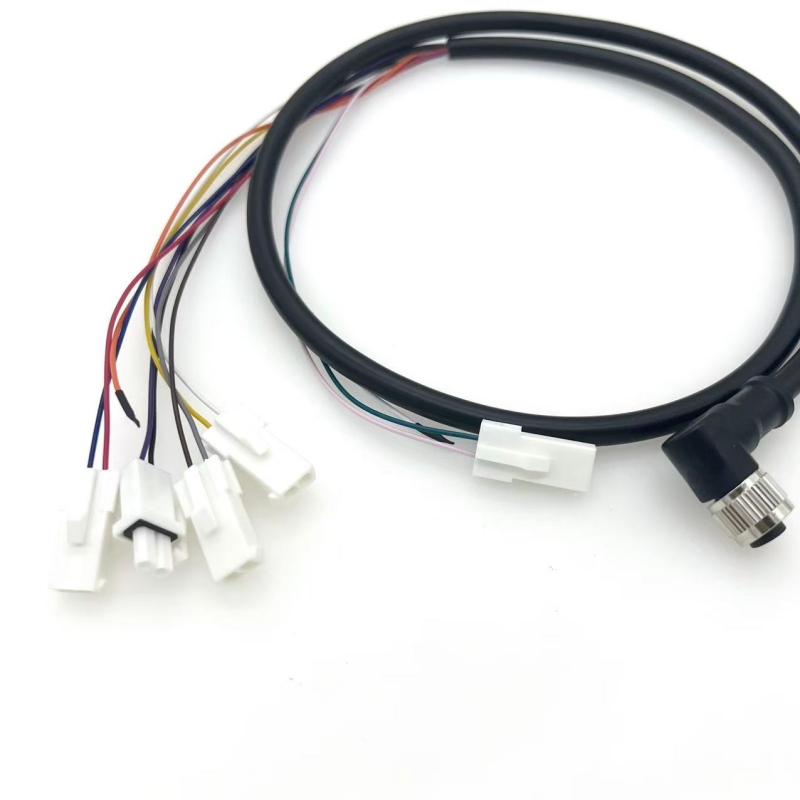

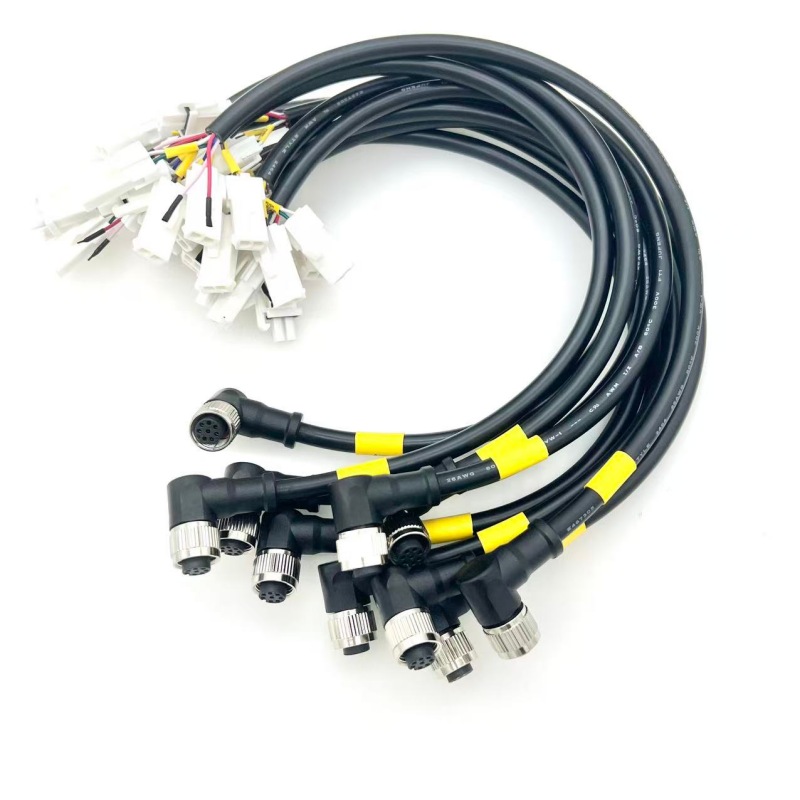

IP69K M12 A-Code 90-Degree Overmolded Cables | Right-Angle Waterproof Solutions by SINNHONG
In the 2026 landscape of Industry 5.0 and Smart Manufacturing, space optimization and environmental resilience are paramount. SINNHONG, a premier China & Vietnam Manufacturer, introduces our specialized M12 A-Coded 90-Degree Overmolded Cable series. Designed for high-density IIoT sensor networks and compact Robotic Actuators, our right-angle connectors solve the critical challenge of cable routing in tight enclosures.
Engineered to the IPC-A-620 Class 3 Standard, these assemblies offer a Low-Profile design without compromising on ruggedness. By leveraging our Vietnam-based OEM Electronics Manufacturing facilities, SINNHONG provides North American and European Tier 1 OEMs with a high-performance, Tariff-Exempt sourcing channel—effectively mitigating Section 301 duties. Featuring UL Listed Wire and Anti-Vibration locking mechanisms, we deliver landed-cost optimized connectivity for the most demanding industrial ecosystems.
Technical Specification Matrix: Ruggedized Angled Connectivity
| Feature | Technical Specification | Compliance & Standards |
| Connector Type | M12 A-Coded (4, 5, 8, 12-Pin) | IEC 61076-2-101 |
| Orientation | 90-Degree Right-Angle Overmolded | Low-Profile Space Saver |
| Protection Class | IP67 / IP68 / IP69K (Washdown Ready) | NEMA 250 / DIN 40050-9 |
| Jacket Material | Oil-Resistant PUR / High-Flex TPE / LSZH | UL 20549 / UL 21198 |
| Contact Plating | Gold-Plated Phosphor Bronze (3u" - 50u") | Low-Contact Resistance |
| Operating Temp | -40°C to +105°C (High-Temp Ready) | Industrial Grade Performance |
| Manufacturing Std | IPC-A-620 Class 3 / IATF 16949:2026 | Zero-Defect Automotive Grade |
| Sourcing Origin | SINNHONG Vietnam (Duty-Free Hub) | US Section |
Engineering Excellence for Harsh Industrial Environments
Low-Profile 90° Overmolding: Our precision-molded right-angle design reduces the "bend radius" requirement, allowing M12 A-Code connections in the narrowest machine gaps and compact AGV/AMR internal chassis.
IP69K High-Pressure Washdown Rated: Specifically designed for food, beverage, and pharmaceutical industries, our connectors withstand 100-bar high-pressure water jets and high-temperature cleaning cycles.
Anti-Vibration Self-Locking System: Features a patented knurled nut and internal ratcheting mechanism to prevent loosening in high-vibration CNC machining or railway signaling applications.
Oil-Resistant PUR & High-Flex Life: Utilizing premium UL Listed Wire, our PUR jackets are resistant to cutting fluids and coolants, rated for 10 million+ bending cycles in dynamic C-track robotic arms.
EMI/RFI Shielding Integrity: 360° shielded overmolding ensures signal purity for Machine Vision and high-speed encoder feedback in electrically noisy factory floors.
Rapid Custom Prototyping: As a global OEM Electronics Manufacturing partner, SINNHONG offers custom cable lengths, specialized pinouts, and LED indicator integrations with rapid DFM (Design for Manufacturing) turnaround.
Space-Constrained IIoT Sensors: Connecting smart sensors in compact PLC cabinets where traditional straight connectors cannot fit.
Autonomous Mobile Robots (AGV/AMR): Ruggedized 90-degree power and data links for navigation sensors and motor controllers in mobile warehouses.
Food & Beverage Processing: Reliable, corrosion-resistant connectivity for washdown-rated sorting and packaging machinery.
Machine Vision & Smart Cameras: High-speed, shielded M12 A-code 8-pin angled cables for precise inspection on high-speed assembly lines.
Railway & Transit Signaling: Halogen-free LSZH 90-degree harnesses for vibration-heavy on-board monitoring and communication systems.
Renewable Energy Systems: UV-resistant and waterproof angled connectors for smart solar tracking actuators and wind turbine sensor arrays.
The customer provides product customization requirements and relevant information.
Our professional technical personnel analyze and evaluate the product requirements, and confirm product details with the customer.
We provide customers with quotations and production plans.
The customer confirms the quotation and production plan, and signs the contract.
We start production and maintain close communication with the customer during the production process.
We complete production and perform strict quality control testing.
We deliver the customized products to the customer and provide after-sales service.
